UNOLINER CRS4600T-DO

UNOLINER CRS4600T-DO

  • Code: CRS4600T-DO

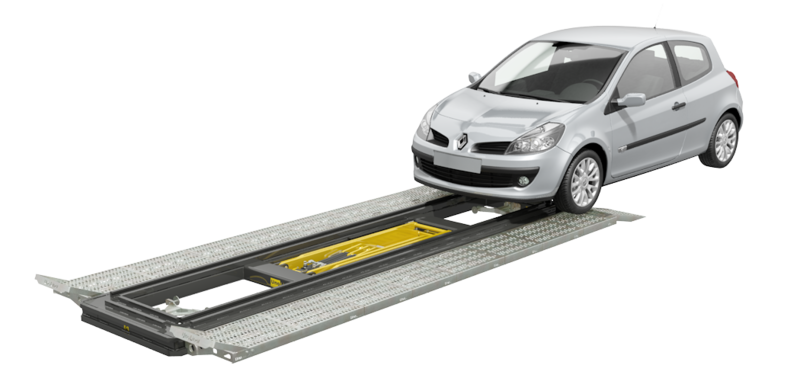

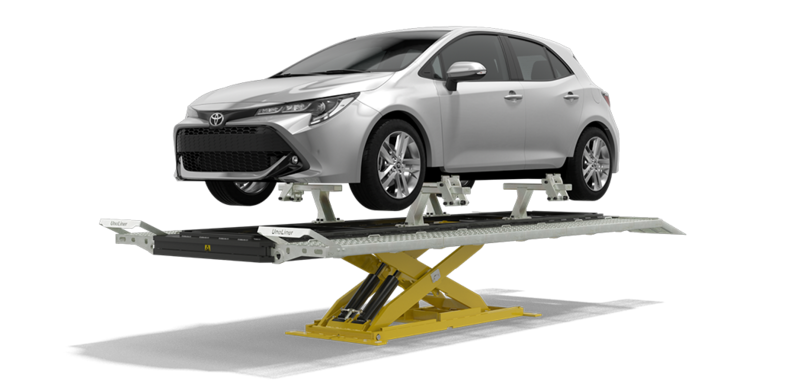

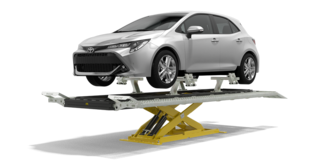

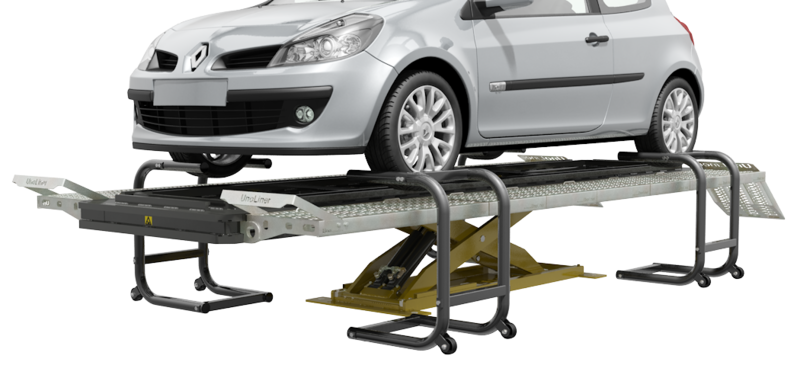

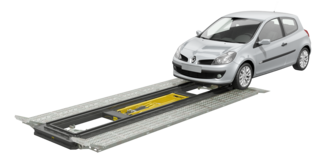

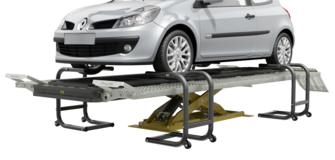

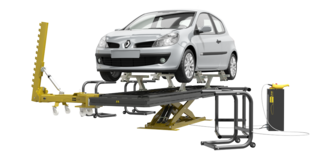

The UNOLINER CRS4600T-DO Bench is a drive-on chassis straightening bench with a lifting capacity of 4600 kg and a bench frame length of 4.6 meters.

This chassis straightening and collision repair frame machine is perfectly suitable for cars of all sizes, crossovers, MPVs, SUVs, pickup trucks, all-terrain vehicles, and light commercial vehicles. Because of its unique two-way locking system, many accessories can be mounted on top of the frame as well as on its sides.

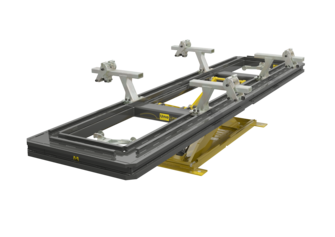

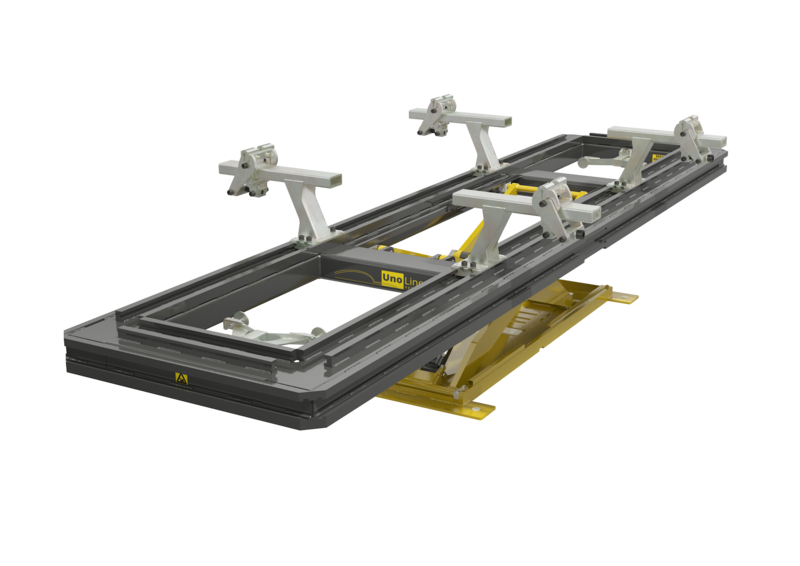

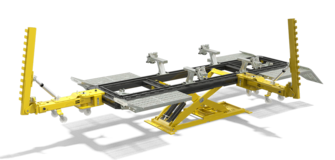

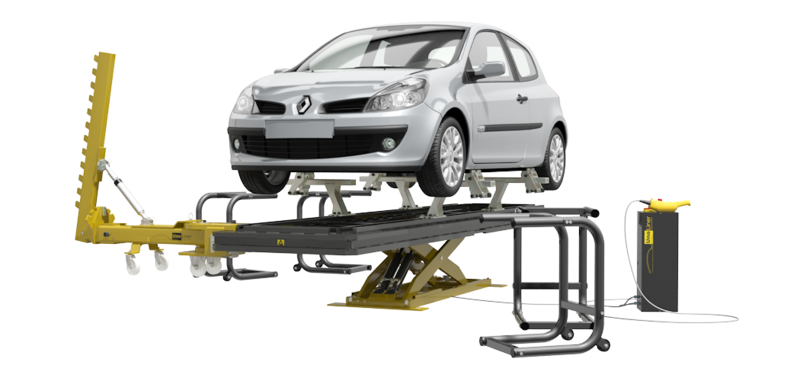

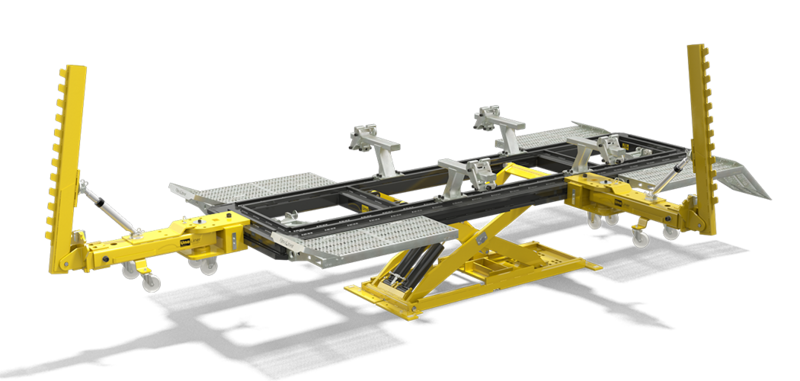

For example, by placing bench adapters outfitted with chassis clamps on top, the side profiles remain fully available for attaching one or more pulling towers, greatly expanding the bench’s already noteworthy versatility.

Features

  • Unique two-way locking system
  • Maximum versatility
  • 4.6 ton lifting capacity
  • Mechanical and hydraulic safety systems
  • Multiple-angle 10-ton pulling ability
  • Interchangeable UnoLiner accessories

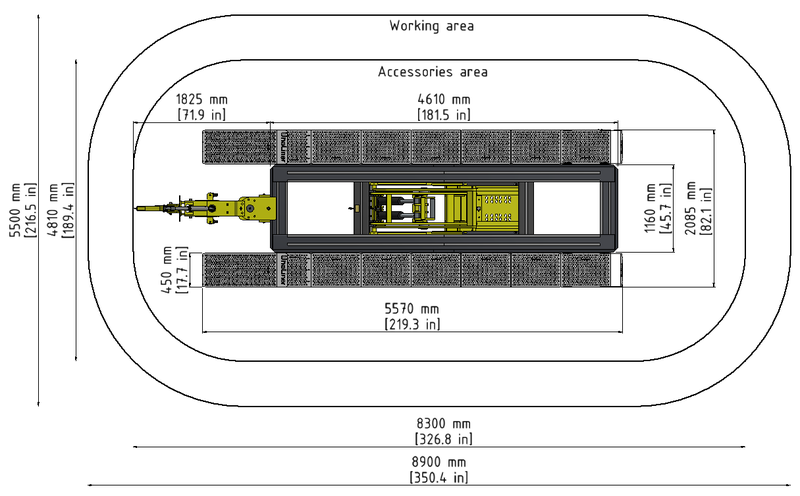

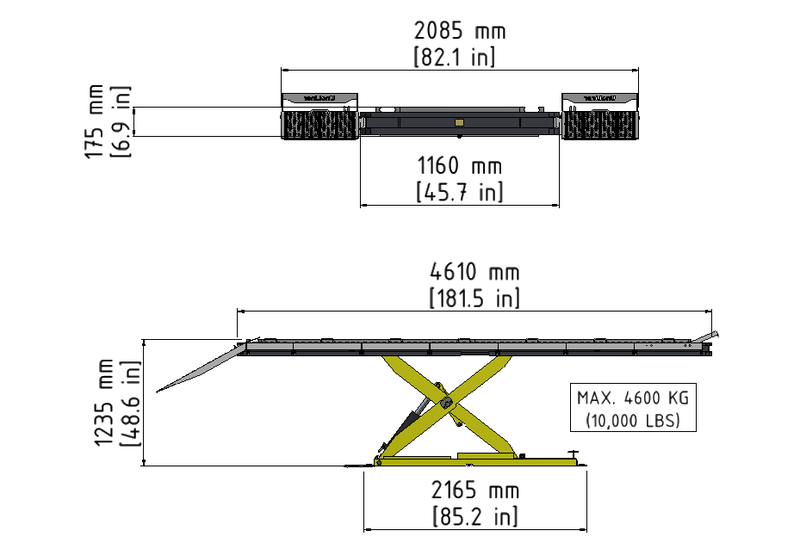

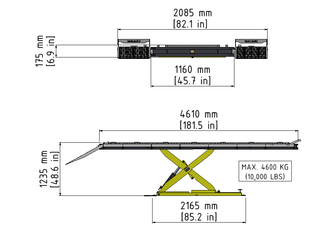

Technical data

  • Bench frame length : 4610 mm
  • Bench frame width : 1160 mm
  • Min. bench height : 175 mm
  • Max. bench height : 1235 mm
  • Max. load weight : 4600 kg
  • Length incl. ramps : 5570 mm
  • Width incl. ramps : 2085 mm
