UNOLINER CRS4000-DO

UNOLINER CRS4000-DO

  • Code: CRS4000-DO

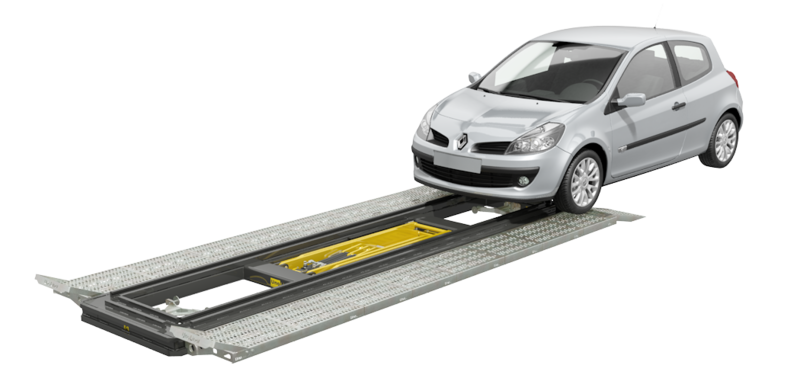

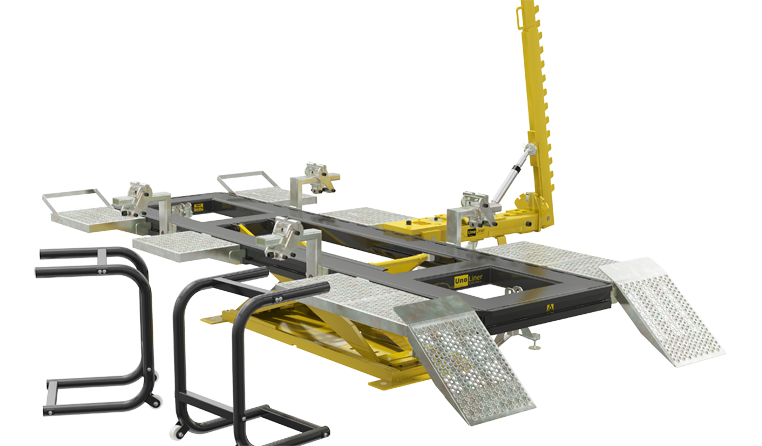

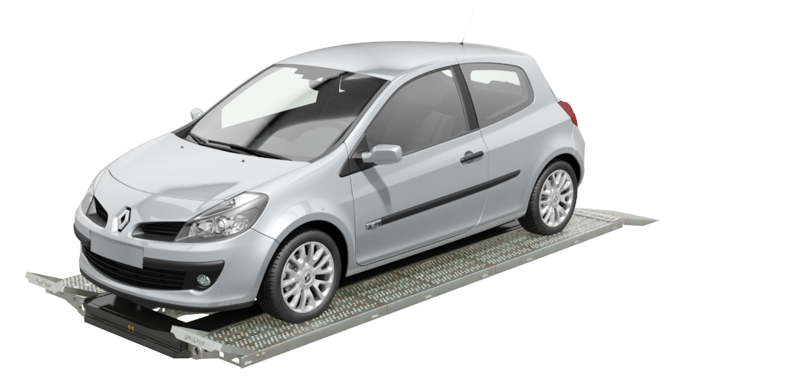

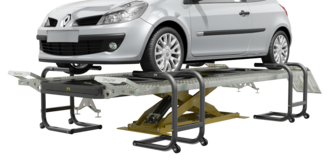

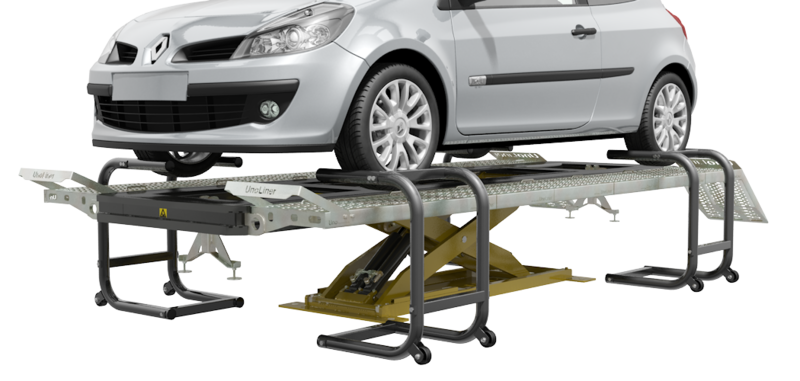

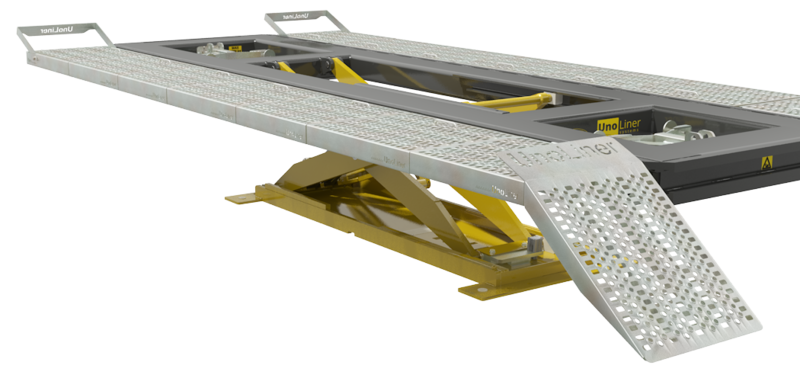

The UNOLINER CRS4000-DO Bench is a drive-on chassis straightening bench with a lifting capacity of 3000 kg and a bench frame length of 4 meters.

This is the universal car chassis straightening and collision repair bench for cars, SUVs, crossovers, MPVs, and light commercial vehicles. The CRS4000 is an ideal straightening, alignment, and collision repair bench, which can also be used as a multifunctional vehicle maintenance and general repair worksite.

This bench offers optimum auto body panel repair and chassis frame alignment at a competitive price. UnoLiner accessories fit on all UnoLiner benches, contributing to a cost-efficient workshop.

Features

  • 3 ton lifting capacity
  • Low base height of 14.5 cm
  • Mechanical and hydraulic safety systems

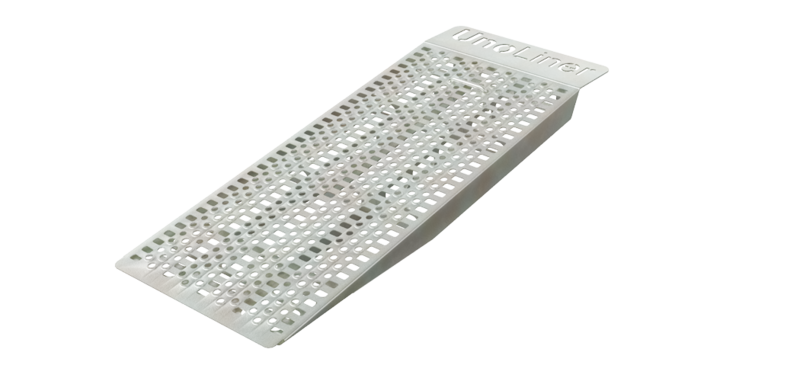

  • Short 60 cm drive-on ramps
  • Optional 100 cm drive-on ramps

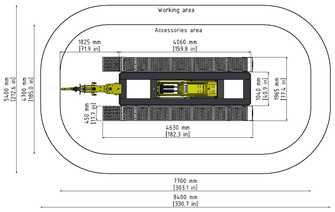

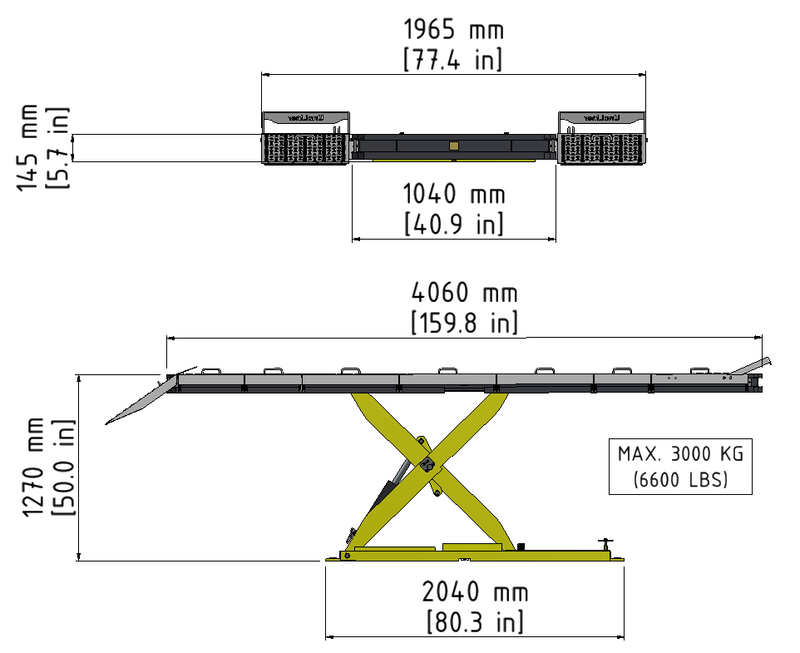

Technical data

  • Bench frame length : 4060 mm
  • Bench frame width : 1040 mm
  • Min. bench height : 145 mm
  • Max. bench height : 1270 mm
  • Max. load weight : 3000 kg

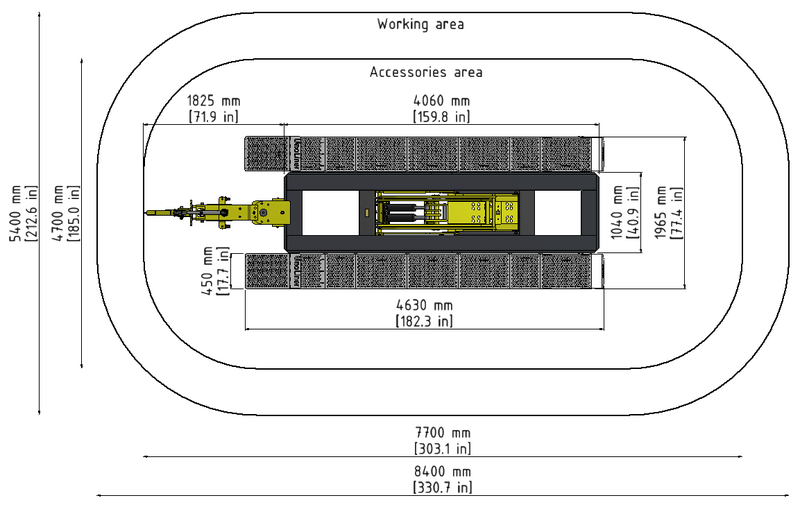

  • Length incl. ramps : 4630 mm
  • Width incl. ramps : 1965 mm
