UNOLINER M85 UL MEASURING SYSTEM 3D

• Code: UNOLINER M85 UL MEASURING SYSTEM 3D

Unoliner M85 UL Measuring System 3D

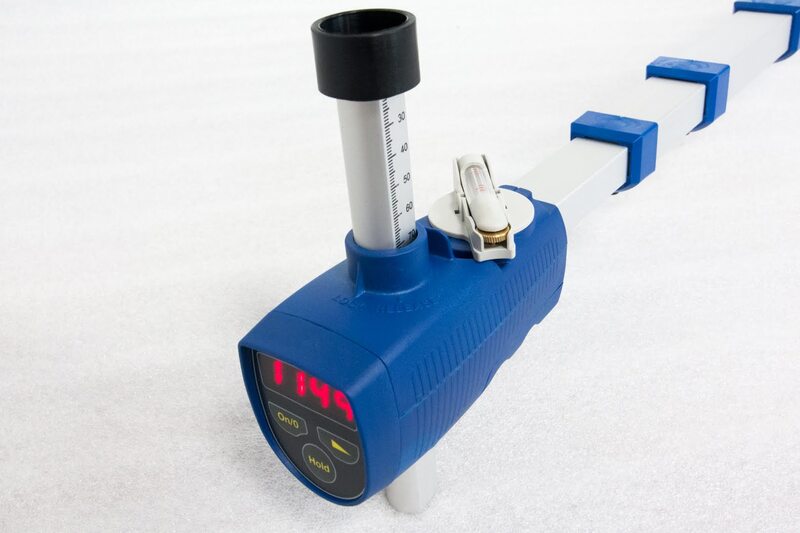

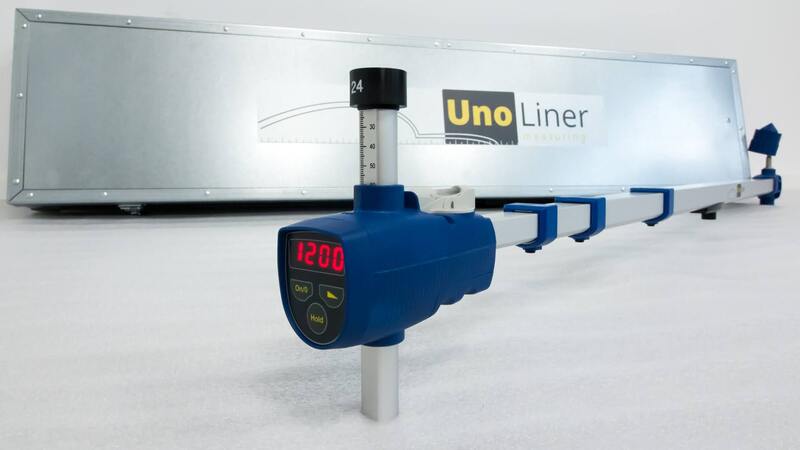

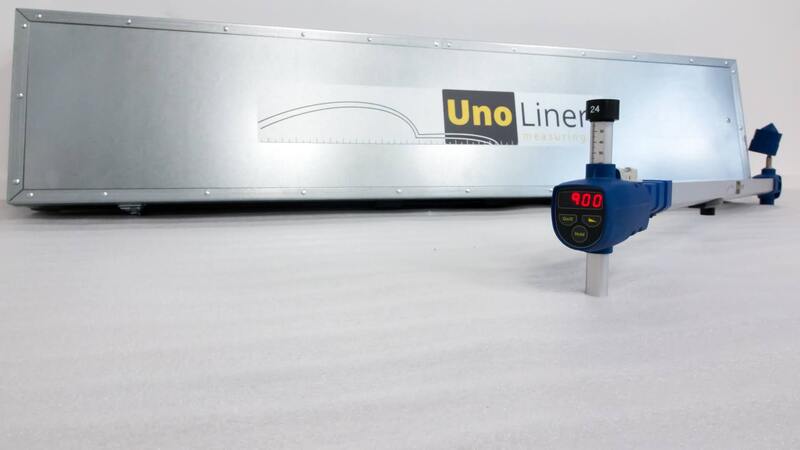

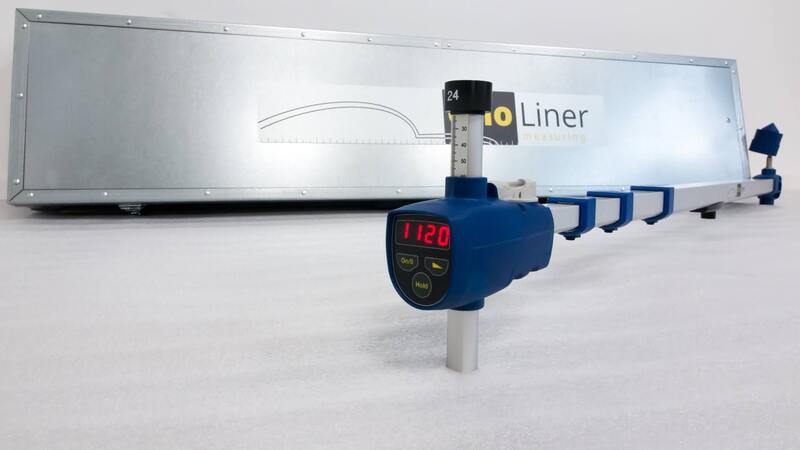

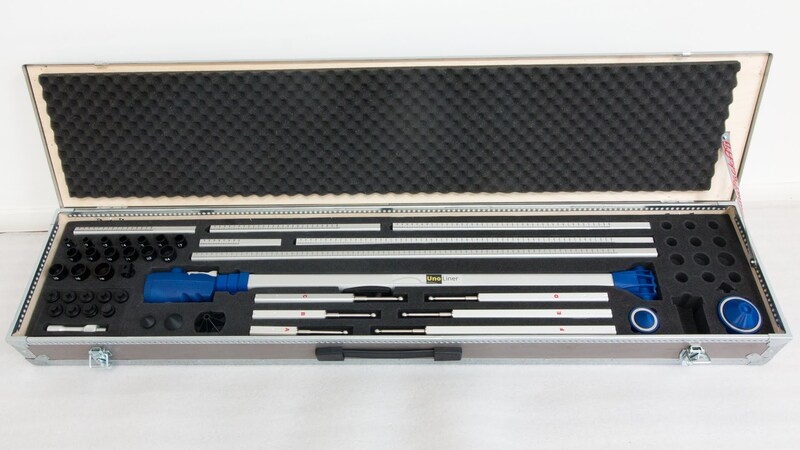

The M85 UL Measuring System 3D adds easy height measuring to this already convenient vehicle chassis and body measuring tool. The M85’s software package contains a vast database of thousands of vehicles and shows its user all connection and measuring points for the chosen vehicle. The included hardware—which is supplied in a sturdy case—consists of an extendable, electronic measuring device with integrated water level and all the necessary accessories such as extensions, adapters, and measuring rods. One person can do the required measuring by himself.

Features

• Point-to-point measuring in 3D
• Can be operated by one person
• Digital measuring rod and accessories included
• Frequently updated vehicle database

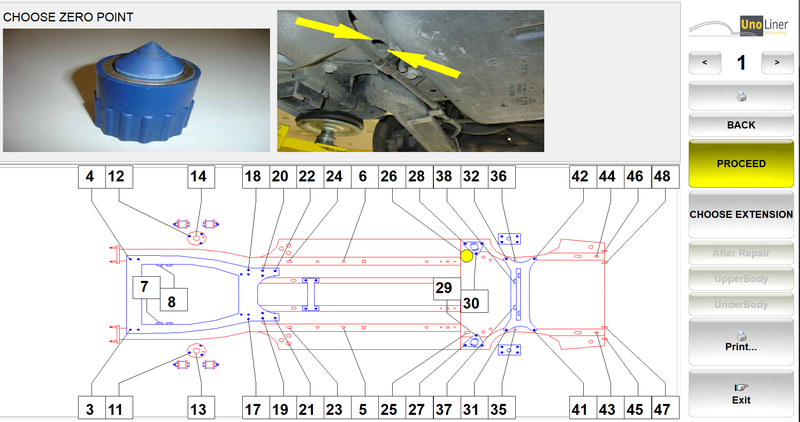

• Create reports and find measuring points with software
• Optional truck clamp set

Technical data

• Chassis measuring : 900-2650 mm
• Short measuring function : 400-2150 mm
• Height measuring : 20-900 mm
