TELWIN DIGITAL PULLER 5500 DUO
TELWIN DIGITAL PULLER 5500 DUO
- Code: TELWIN DIGITAL PULLER 5500 DUO
CODE - 828131

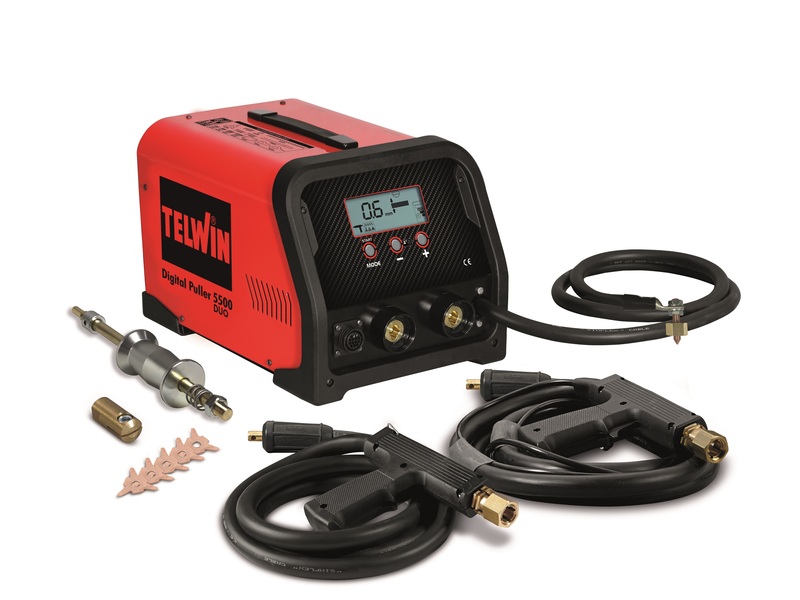

DIGITAL PULLER 5500 DUO
- Microprocessor controlled, electronic system for repairing of metal sheets, fit for applications in car body shops.
The LCD digital, multifunction control panel allows the automatic regulation of the spot welding parameters according to the chosen tool.
Complete with:
1. Automatic gun,
2. Manual gun,
3. Earth Cable
4. Slide Hammer - 5. pulling stars
- 6. Trolley
CODE828131
MAX SPOT-WELDING CURRENT2500 A
SINGLE PHASE MAINS VOLTAGE230 V
DUTY CYCLE1,5 %
MAINS FREQUENCY50 / 60 Hz
PROTECTION DEGREEIP22
PEAK SPOT-WELDING CURRENT3800 A
DIMENSIONS39 x 26 x 22,5 cm
MAX NO LOAD VOLTAGE5,6 V
WEIGHT24
MAX ABSORBED POWER10,5 kW
EAN CODE8056151810007
RATED POWER X=50%1,8 kW
PIECES/PALLET18 pz/pallet
MAINS FUSE16 A
PIECES/PALLET - B12 pz/pallet B
POWER FACTOR0,8
